Yellow Jacket Series 41 vs. Titan: The Field Standard for A2L Refrigerants
In an era where digital gauges with Bluetooth screens dominate headlines, ask veteran HVAC/R technicians what stays permanently mounted in their service van, and nine out of ten will point to a Yellow Jacket Series 41 brass manifold.
Made in the USA by Ritchie Engineering, the Series 41 has set the standard for mechanical reliability for over 50 years. Here is how this legendary tool performs on modern high-pressure and A2L systems.
1. Forged Brass Durability That Survives Rooftop Drops
While digital screens can crack when dropped from an 8-foot ladder or freeze up in below-zero winter temperatures, the forged solid brass body of the Series 41 is virtually indestructible.
- Double O-Ring Piston Seals: Designed for smooth quarter-turn throttling without stem packing leaks.
- Nylon Seats: High-tensile nylon seats withstand thousands of cycles without grooving or leaking across ports.

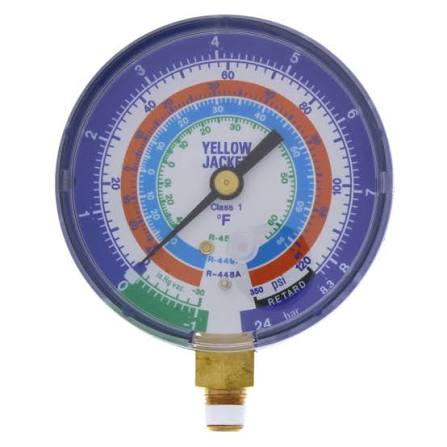

- Surge Dampened Gauges: 3-1/8" flutterless analog gauges with silicone-dampened needles that eliminate pointer pulsation from reciprocating compressors.
2. Updated Gauge Faces for A2L: R-32, R-454B & R-410A
With the 2025/2026 EPA mandates phasing down high-GWP refrigerants, Yellow Jacket updated the Series 41 (Model 42035) with color-coded, high-visibility dials specifically calibrated for R-32, R-454B, and R-410A pressure-temperature relationships.
| Refrigerant | Evaporator Pressure (40°F Sat Temp) | Condensing Pressure (110°F Sat Temp) | ASHRAE Safety Class |
|---|---|---|---|
| R-410A | 118.0 PSIG | 365.0 PSIG | A1 (Non-Flammable) |
| R-454B (Opteon XL41) | 114.2 PSIG | 358.5 PSIG | A2L (Mildly Flammable) |
| R-32 | 120.5 PSIG | 378.2 PSIG | A2L (Mildly Flammable) |
3. Calibrating Analog Gauges in the Field
Even the highest-quality analog gauges can drift slightly after hundreds of hours in a vibrating service truck. Calibrating a Yellow Jacket gauge is simple: remove the clear plastic lens and use a small flathead screwdriver to turn the recalibration screw until the needle rests precisely on 0 PSIG with the manifold open to atmosphere.
Pro Tip: Always pair your Series 41 manifold with genuine Yellow Jacket PLUS II 60" charging hoses equipped with compact ball valves (Model 21985) to prevent refrigerant loss and protect your hands from frost burns.
Shop genuine Yellow Jacket Series 41 manifolds, replacement gauges, and PLUS II hose sets at Texpert Deals.
