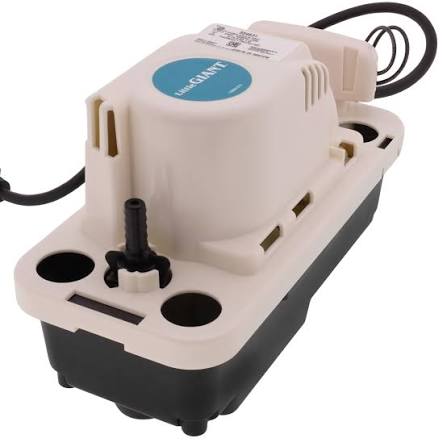

Little Giant Condensate Pump VCMA-20ULS-PRO 230V

The Little Giant VCMA-20ULS-PRO in the 230 volt configuration is a condensate pump with integral safety switch for equipment operating on a 230 volt supply.

Voltage selection follows the supply available at the equipment rather than a preference. Light commercial equipment is frequently supplied at 230 volts, and providing a separate 115 volt circuit purely for a condensate pump adds cost and complexity where a 230 volt pump can be fed from the existing supply.

The point requiring care is that this model number appears in both voltages, distinguished only by the voltage designation. Ordering by model number alone, without confirming the voltage variant, is a straightforward way to arrive on site with the wrong pump.

Connecting a 115 volt pump to a 230 volt supply destroys it immediately. The reverse, a 230 volt pump on 115 volts, will not run properly and may not run at all.

Confirming the supply voltage by measurement at the point of connection, rather than inferring it from the equipment nameplate or the building's general service, is the reliable approach.

The safety switch requires the same attention regardless of voltage. It must be wired into the equipment control circuit and tested by lifting the float.

Confirm voltage, flow rate at the required lift, tank capacity, inlet configuration, and switch wiring against the installation. Level and secure the pump and route the discharge to rise then fall continuously.

Brand

Little Giant

SKU

VCMA-20ULS-PRO

Category

Condensate Pumps

Weight

5.5 lbs

Dimensions

10.20" x 4.80" x 6.50"

Price

$84.00

Availability

In stock (5 available)

Rating

0 / 5.0
