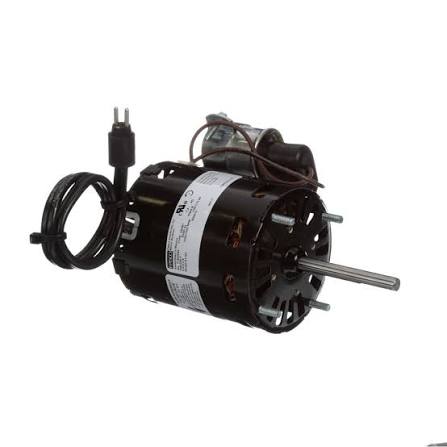

Fasco Blower Motor 1/15 HP 15 D1125

The Fasco D1125 is a 1/15 horsepower blower motor for HVAC applications.

Small fractional horsepower motors of this class serve draft inducers, small blowers, and auxiliary air movement in heating and refrigeration equipment.

Motor replacement requires matching several specifications, and horsepower alone is insufficient.

Voltage and phase must match the supply. Speed, stated in RPM, must match the original, since a motor of different speed moves a different quantity of air with the same wheel. Rotation direction must be correct, and it is stated as viewed from a specified end, which must be read carefully. Frame size and mounting arrangement must suit the equipment. Shaft diameter and length must match the wheel or blade. Bearing type, sleeve or ball, affects mounting orientation options and service life. And the enclosure must suit the environment.

A motor correct on horsepower but wrong on any of these will either not fit or not perform.

Recording all of these from the original nameplate before ordering avoids a second visit.

Applications include gas furnaces, air handlers, refrigeration equipment, and HVAC air movement.

Brand

Fasco

SKU

D1125

Category

Blower Motors

Weight

3.8 lbs

Dimensions

6.50" x 3.30" x 3.30"

Price

$168.00

Availability

In stock

Rating

4.2 / 5.0
