Sitex VECTOR PRO G2 Compass IMO Certified GPS
Brand:
Si-tex
SKU: L0L-24118
Availability:
In Stock
Ships same day if ordered by 12 pm
4.5
(12 reviews)
$3,599.99
/each
Secure Checkout
100% Genuine Parts
Manufacturer Warranty
Ships from USA
Secure Payments
30DAY
Easy Returns
Fast Shipping
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
4.5 / 5
0 reviews
In Stock
Ships fast
Si-tex
Authentic part
Description
Si-tex Vector Pro G2 GPS Compass
Model: VECTOR PRO G2- The rugged enclosure combines GPS' Crescent Vector board and two multipath-resistant antennas for simple installation
- The half-meter length smart antenna mounts easily to a flat surface or pole
- The stability and maintenance-free design of the Vector Pro replaces traditional gyrocompasses at a fraction of the cost
- IMO Wheelmarked for Commercial applications
Experience superior navigation from the accurate heading and positioning performance available with the Vector Pro G2 Series GPS Compass.
Specifications| Twin Receivers w/ L1, C/A code, with carrier phase smoothing | |
| Channels | Two 1?channel, parallel tracking, (Two 10-?channel when tracking WAAS) |
| Update Rate | Standard 20 Hz Adjustable (position and heading) |
| Horizontal Accuracy | <
0.6
m
95%
confidence
(* < 2.5m 95% confidence (aiutonomous, no SA)** |
| Heading accuracy | <0.3 deg rms |
| Pitch/roll accuracy | < 1 deg rms |
| Rate of turn | 90 deg/s max |
| Start up time | < 60s typical |
| Heading fix | < 20s |
| Satellite reacquisition | < 1s |
| Beacon Sensor Specifications (G2B version) | |
| Channels | 2-channel parallel tracking |
| Frequency range | 283.5 to 325 kHz |
| Operating modes | Automatic (signal strength or range) and manual |
| Compliance | IEC 611 08-4 beacon standard |
| Communications | |
| Srial ports | 2 full duplex RS-232 and 2 half duplex RS-422 |
| Data I/O protocol | NMEA 0183 |
| Enviromental | |
| Operating temperature rage | -30 degC to +70 degC |
| Humidity | 100% non condensing |
| Input voltage | 9-36vDC |
| Power consumption | <5w |
| Isolation | Power supply isolated fromserial ports |
| Mechanical | |
| Dimensions | 23.6 x 6.3 in x 7.1 in |
Specs
- Brand
- Si-tex
- SKU
- L0L-24118
- Category
- Compasses & Heading Sensors
- Weight
- 20 lbs
- Dimensions
- 23.6 x 6.3 x 7.1
- Price
- $3,599.99
- Availability
- In stock
- Rating
- 4.5 / 5.0
Contact
You May Also Need
In stock
View Product
Raymarine

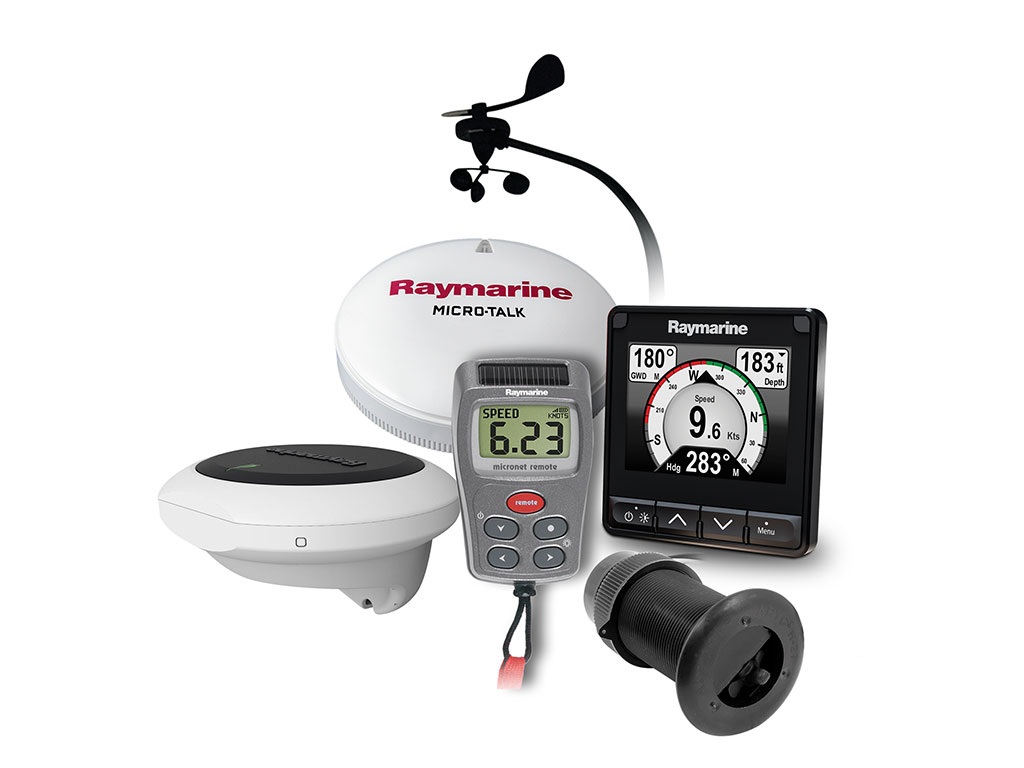

Raymarine T70349 i70s Wireless Wind with DST800, Heading SensorSKU: L8T-72867
