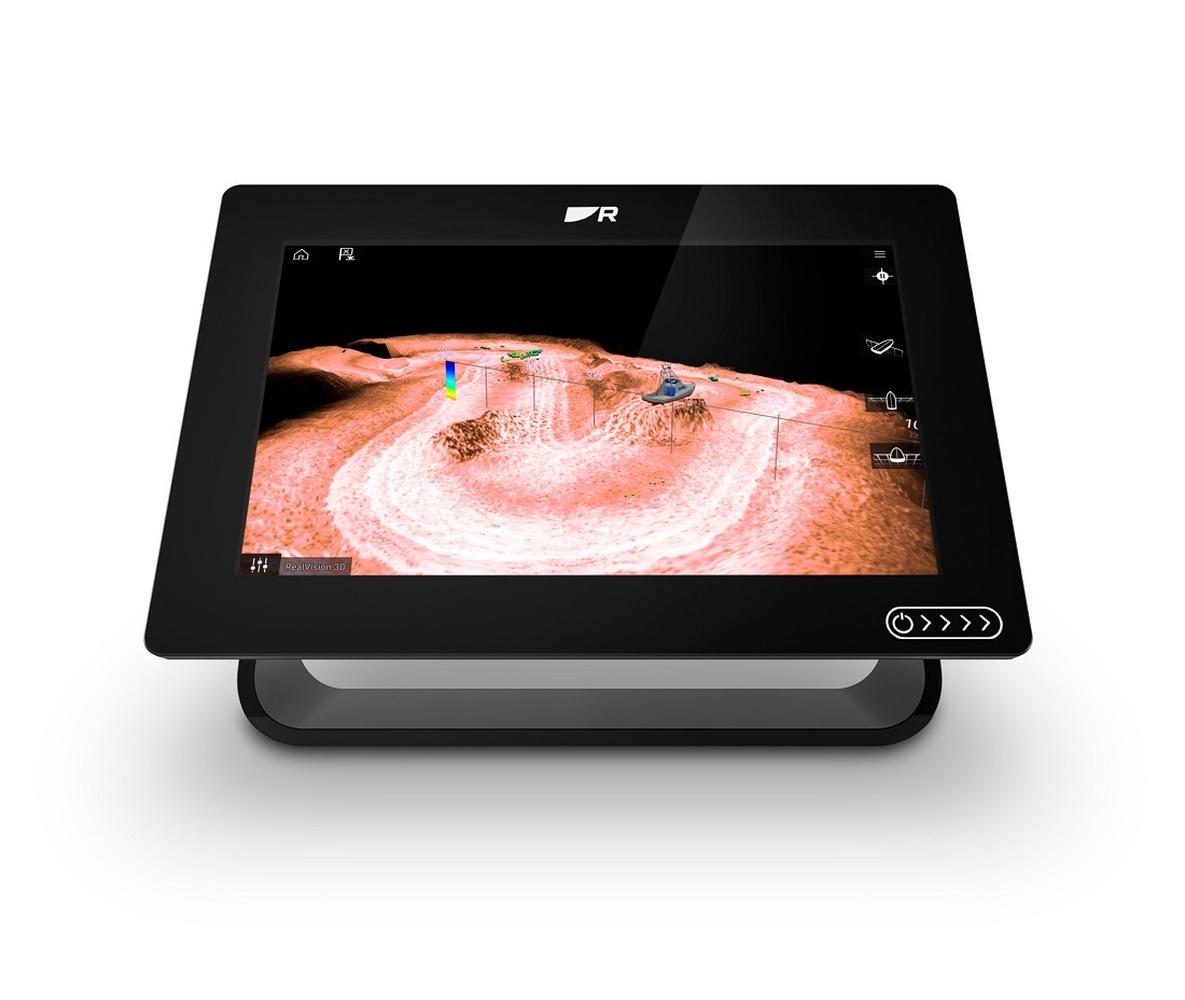

Raymarine E70637-03-102 Axiom+ 9RV 9 in MFD RV100 Transom Transducer Lighthouse North America Chart

Name: Raymarine E70637-03-102 Axiom+ 9RV 9 in MFD RV100 Transom Transducer Lighthouse North America Chart
Brand: Raymarine
SKU: RAYE7063703102
Price: 2479.99 USD
Availability: OutOfStock

Brand: Raymarine SKU: RAYE7063703102

Availability: Call for pricing Ships fast from our US warehouses

$2,479.99 /each

Currently out of stock

Call or email us for pricing, lead time and alternatives — we source this part on request.

Call for pricing Request this part

Or email sales@texpertdeals.us

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Product Highlights

Warranty Manufacturer backed

0 / 5 0 reviews

Call for pricing Talk to our team

Raymarine Authentic part

Description

Raymarine Axiom+ 9RV 9" Muilti-Function Display with RealVision Sonar - with RV100 Transducer and Lighthouse North America Charts

Model: E70637-03-102

Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.
Powerful quad-core processor, plus increased onboard storage for personal data and apps.
Smart and intuitive LightHouse 3 OS makes navigating easy.
ClearCruise™ Augmented Reality-capable for smarter navigation decisions.
Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
Network with multiple Axiom displays, radars, sonar, and more.
Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.

New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

Specifications

General
Display Size	9.0 inch High Density IPS
Display Resolution	1280 x 720 (WXGA)
Display Type	Multitouch with HydroTough™ rugged hydrophobic coating
Brightness	1,500 nits
Viewing Angle	85° Top, Bottom, Left, Right
Dimensions W x H x D (Excluding trunnion and cables)	9.65 x 6.22 x 3.0in
Mounting Options	Surface, Flush, Trunnion, (Front installation bracket available)
Waterproof Rating	IPX6 / IPX7
Operating Temperature Range	-25°C to +55°C (-13°F to +131°F)
Storage Temperature Range	-30°C to +70°C (-22°F to +158°F)
Power
Voltage	12V DC (8V to 16V DC)
Power Consumption (Full brightness)	11.98 Watts
Sensors
GNSS / GPS	Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required
Sonar Type (Built-in)	RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D
Sonar Connections	25pin RealVision™ type connector
Sonar Depth	High CHIRP Sonar = 900 feet (274m) DownVision™ = 600 feet (183m) SideVision™ = 300 feet (91m) RealVision™ 3D = 300 feet (91m)
External Sonar Option	Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
Radar	Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
AIS	Yes - NMEA2000 compatible
Autopilot Control	Yes - Evolution Autopilot
Thermal Night Vision	Yes FLIR AX8, M232, M300 Series, M400, M500
Video / Camera	Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
Weather	GRIB View - Free GRIB viewer and Theyr Ltd Subscription SiriusXM - N. America Only
Audio	NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
Digital Switching	Yes - Empirbus & C-Zone compatible
Remote Control	Yes Optional RMK-10 (A80438)
Networking
Ethernet	1 x 10/100 Mbit/s Network (RayNet)
NMEA0183	No
NMEA2000	NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
SeaTalkNG	Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
USB	1 x USB microAB
Wi-Fi	WiFi - 802.11 a/b/g/n
BlueTooth	Bluetooth v4.0
Navigation
Cartography	Lighthouse Charts, Navionics, and C-MAP compatible
Waypoint/Routes/Tracks (Wpts/Rts/Trk)	10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
Memory
Internal Memory	16 GB Solid State
External Memory	1x MicroSD Card Slot
Languages	24
Conformances	NMEA 2000 certification Europe: 1999/5/EC Australia and New Zealand: C-Tick, Compliance Level 2 FCC 47CFR part 15 Industry Canada RSS210

What's in the Box:

Multifunction Display
Trunnion bracket
Trunnion knobs x 2
Suncover — Trunnion mount
Panel mount gasket for surface/flush mounting
M5x58 Threaded studs x 4
M5 Thumb nuts x 4
Documentation pack
DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
Rear mounting brackets:
Lighthouse North America Charts mSD
RV100 Transducer
