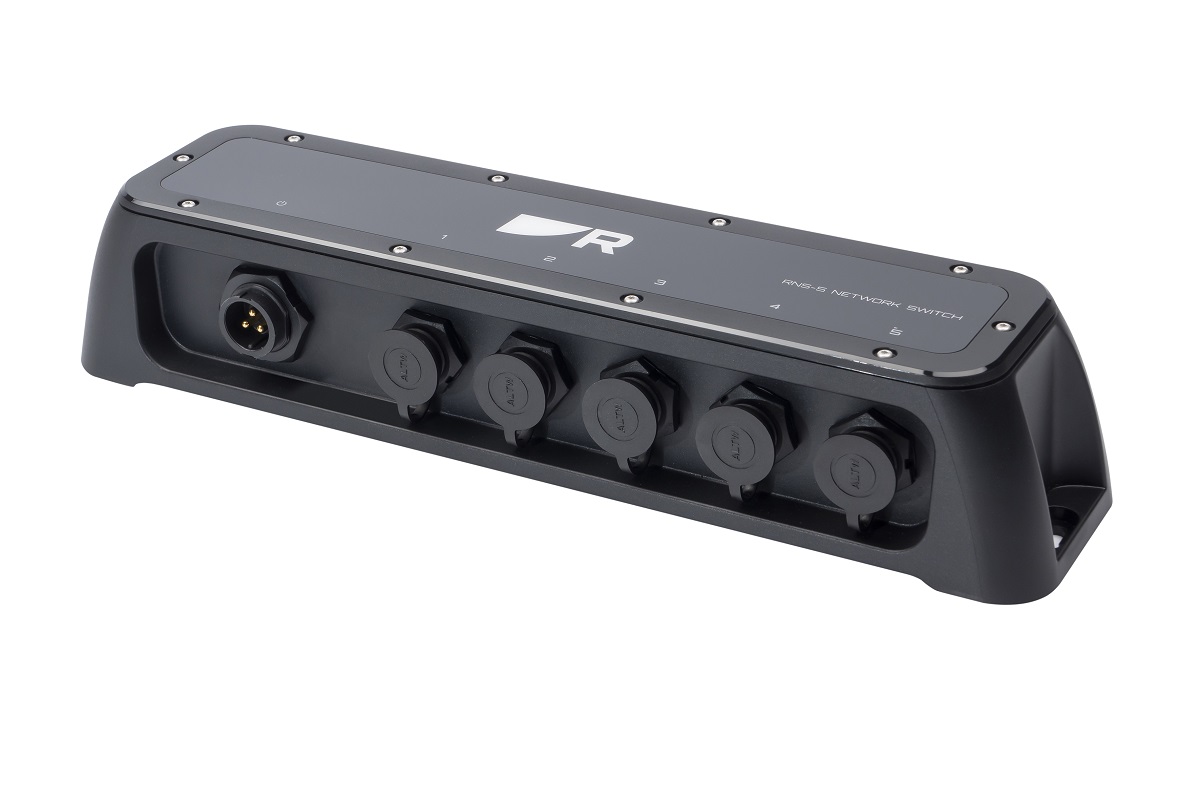

Raymarine A80731 RNS-5 Network Swtich
Brand:
Raymarine
SKU: W2K-24843
Availability:
In Stock
Ships same day if ordered by 12 pm
4.5
(12 reviews)
$349.99
/each
Secure Checkout
100% Genuine Parts
Manufacturer Warranty
Ships from USA
Secure Payments
30DAY
Easy Returns
Fast Shipping
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
4.5 / 5
0 reviews
In Stock
Ships fast
Raymarine
Authentic part
Description
Raymarine RNS-5 5 Port raynet network Switch
Model: A80731- 5 RayNet Ethernet gigabit ports for fast and reliable connectivity
- Rugged IPX6 and IPX7 construction
- Reliable, waterproof RayNet connector Ethernet cable ports
- Designed for simple bulkhead mounting
- LED power and network port status indicators
- Unmanaged- simply plug and play with Raymarine devices
- No complicated setup or configuration
The RNS-5 network switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling. Use the RNS-5 to integrate Axiom displays with radars, sonar modules, IP cameras, and Teledyne FLIR thermal cameras. The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained together for larger systems. The RNS-5 is simple to install and requires no complicated setup.
Specifications| 12 or 24 V dc | |
| Operating voltage range | 9 to 32 V dc |
| Power Consumption | <2.5 watts <600mA @12V |
| ENVIRONMENTAL SPECIFICATION | |
| Operating temperature range | -25 degC (-13 degF) to + 55 degC (131 degF) |
| Storage temperature range | -30 degC (-22 degF) to + 70 degC (158 degF) |
| Humidity | up to 93% @ 40 degC (104 degF) |
| Water ingress protection | IPx6 |
| PHYSICAL SPECIFICATION | |
| Dimensions (w x h x d) | 286 mm (11.26 in) x 69 mm (2.72 in) x 55 mm (2.17 in) |
| Weight | .36 Kg (.79 lbs) |
| NETWORK | |
| Protocals | RayNet Ethernet. Legacy SeaTalkHS using an adaptor cable |
| Connection Speed | 1 Gigabit |
| Number of Ports | 5 |
What's in the Box:
- Raymarine RNS-5 Network Swtich
