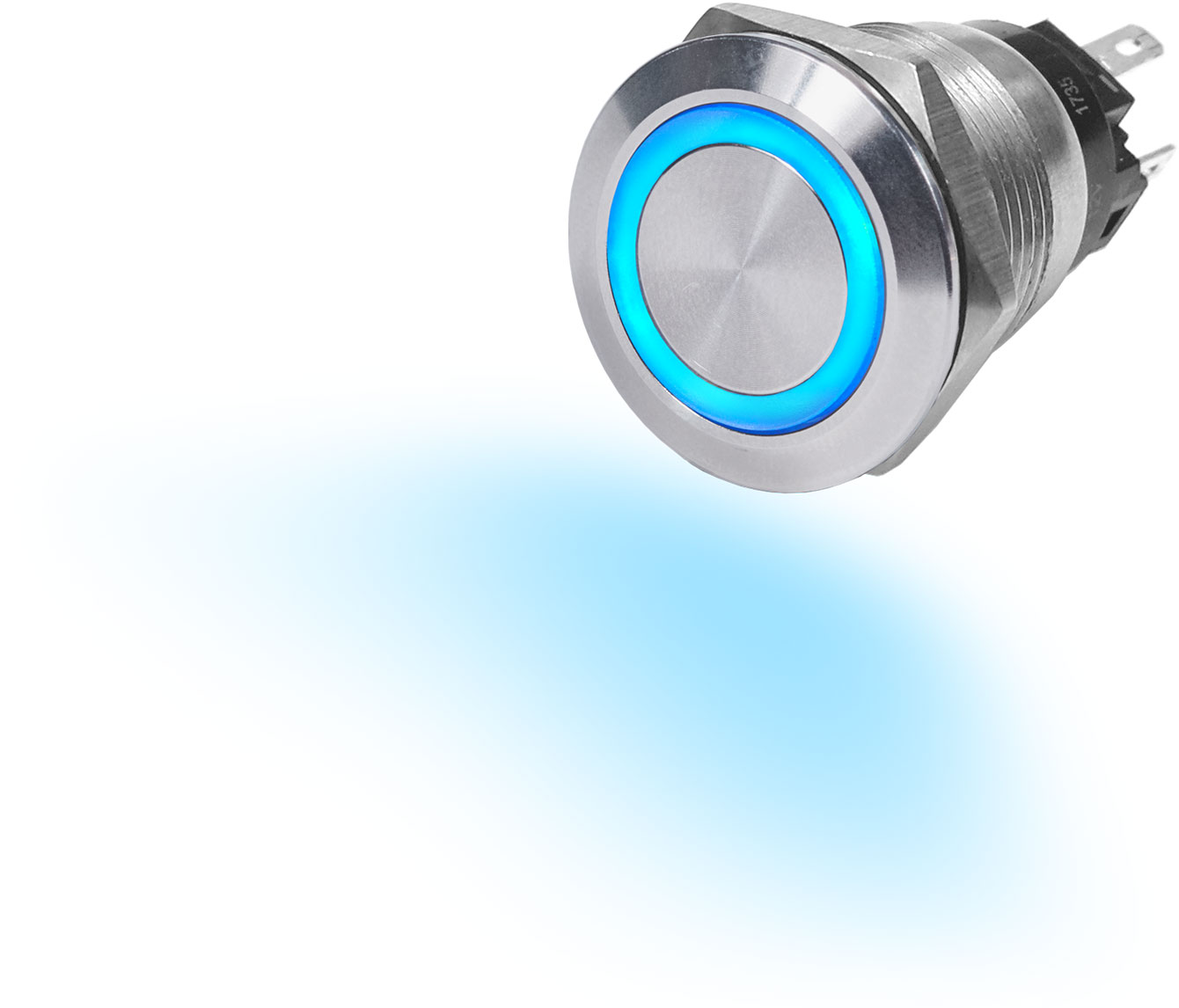

Blue Sea 4161-BSS 4161 10A Push Button LED Ring Switch Off-(On) Blue Momentary On
Brand:
Blue Sea Systems
SKU: PU4-46898
Availability:
In Stock
Ships same day if ordered by 12 pm
4.4
(29 reviews)
$34.99
/each
Secure Checkout
100% Genuine Parts
Manufacturer Warranty
Ships from USA
Secure Payments
30DAY
Easy Returns
Fast Shipping
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
4.4 / 5
0 reviews
In Stock
Ships fast
Blue Sea Systems
Authentic part
Description
Blue Sea 10A Push Button LED Ring Switch Off-(On) Blue- Momentary On
Model: 4161-BSS- 10A continuous
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
| OFF-(ON)- Momentary One | |
| Amperage | 10A @ 12V DC Resistive 3A @ 12V Inductive |
| Nominal Voltage | 12V DC |
| Maximum LED Operating Current | 20mA |
| Minimum Operating Temperature | -10 deg C |
| Maximum Operating Temperature | 70 deg C |
| Minimum Storage Temperature | -55 deg C |
| Maximum Storage Temperature | 85 deg C |
| Illumination | Independent - Separate contacts for LED power |
| Max Panel Thickness | 0.31in (7.87 mm) |
| Mounting Hole | 3⁄4 in (19mm) |
| Switching Cycles | 40,000 |
| Termination | 5 - 0.110inch Quick Connect terminals |
Specs
- Brand
- Blue Sea Systems
- SKU
- PU4-46898
- Category
- Switches
- Weight
- 0.2 lbs
- Dimensions
- 5.0 x 4.0 x 2.0
- Price
- $34.99
- Availability
- In stock
- Rating
- 4.4 / 5.0
